Luna-Wing

Basic Layering Procedure

Primer Paste

1.Apply Primer Paste and Invisible Opaque, and light cure

Apply Primer Paste evenly with a slim round brush. Leave it for 120 sec., to enhance bonding strength. Light cure for 90 seconds. Then apply Invisible Opaque to cover retention beads. Applied thinly in margin area with no beads. Light cure for 90 sec. again. Primer paste is a bonding material, but at the same time it can be used as Invisible Opaque, the use of Invisible Opaque is not necessary. In this case, Primer Paste should be applied thickly enough to cover retention beads.

Opaque

2.Apply Opaque and light cure

Apply Opaque with a brush and light cure for 180 sec. Repeat this step until the metal color is fully covered.

Dentine

3.Apply Dentine and light cure

Apply and form Dentine, considering the contours and shape of the dentine core, then light cure for 60 sec.

Enamel

4.Apply Enamel and light cure

Apply and form Enamel, considering the final crown contours, then light cure for 60 sec. As a final light-curing step, light cure for another 180 seconds.

Primer Paste Polisher

5.Polishing and glazing

After adjusting the contours, polish for glazing with a C&B diamond polisher or a C&B nano diamond polisher using a rotating brush, a fabric buff and etc.

6.Completion

Easy Handling & Great Workability

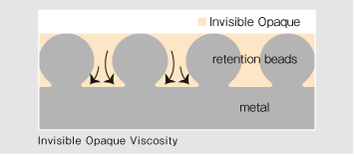

Invisible Opaque Viscosity

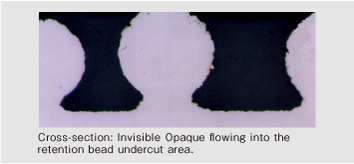

As Invisible Opaque has optimal viscosity, it flows into the undercut area of retention beads easily and it enhances the adhesive strength mechanically. Also, the whitish translucency of Invisible Opaque allows for an effective curing undercut area. The white color also works as a shading for the metal, so that opaque layering can be kept thinner in order to avoid immature curing. Apply Invisible Opaque to cover 100-200μm diameter retention beads

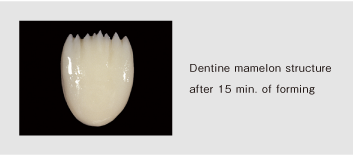

Effective Shape Preservation of Internal Structures

Consistency of body resin affects workability at the work site. Especially, internal structures such as the dentine core require optimal consistency to keep form. Luna-Wing exhibits such good shape preservation that the dentine edges even of bridges or connected teeth can maintain shape during light curing. This is especially true of mamelons.

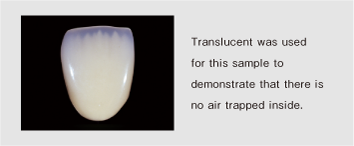

No Entrapping of Air in Enamel

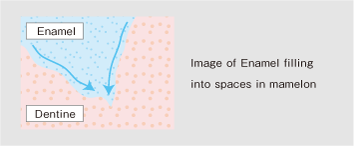

Luna-Wing Enamel, Translucent and Effect are designed to 30% less consistency than body resins such as Dentine, Cervical and Opaque Dentine. This consistency prevents entrapping of air and it fills up the space around mamelons easily.

This excellent workability is the result of employing spherical nano-fillers and the delicately calculated design of the shapes and the sizes of organic and inorganic complex fillers.

Hard Type Selection
There are hard type selections for our Enamel, Trans Enamel and Translucent products. The consistency of Hard Type is very close to that of Dentine.
