| Usage environment | Temperature 5-40℃, Humidity 10-95%RH, altitude max2000m |
| Operating Voltage and Frequency |
AC230V±10% 50Hz |
| Power consumption | 160VA |
| Number of course | 4 Courses |
| Curing time | 5-995 Sec. |
| Drying time | 5-995 Sec. ( Course button 4. ) |
| Revolutions per minute | 8.3r/min(50Hz) |
| External dimensions | 210(W)x220(H)x223(D)mm |
| Dimensions of chamber | 135(W)x77(H)x135(D)mm |
| Weight | 5.4㎏ |
| Emission wavelength | 375nm～495nm |
| Quantity of LED lamps | Power LED lamp 40pcs |

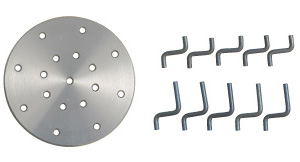

| Accessories | Tray: 1 pc, Big Pin: 5 pcs, Small Pin: 5 pcs |
The values given in these specifications are representative, and do not constitute a guarantee of performance.
The maker reserves the right to modify the specifications without prior announcement for purposes of enhancing the equipment’s performance.
