>YAMAKIN CO., LTD.

TWiNY

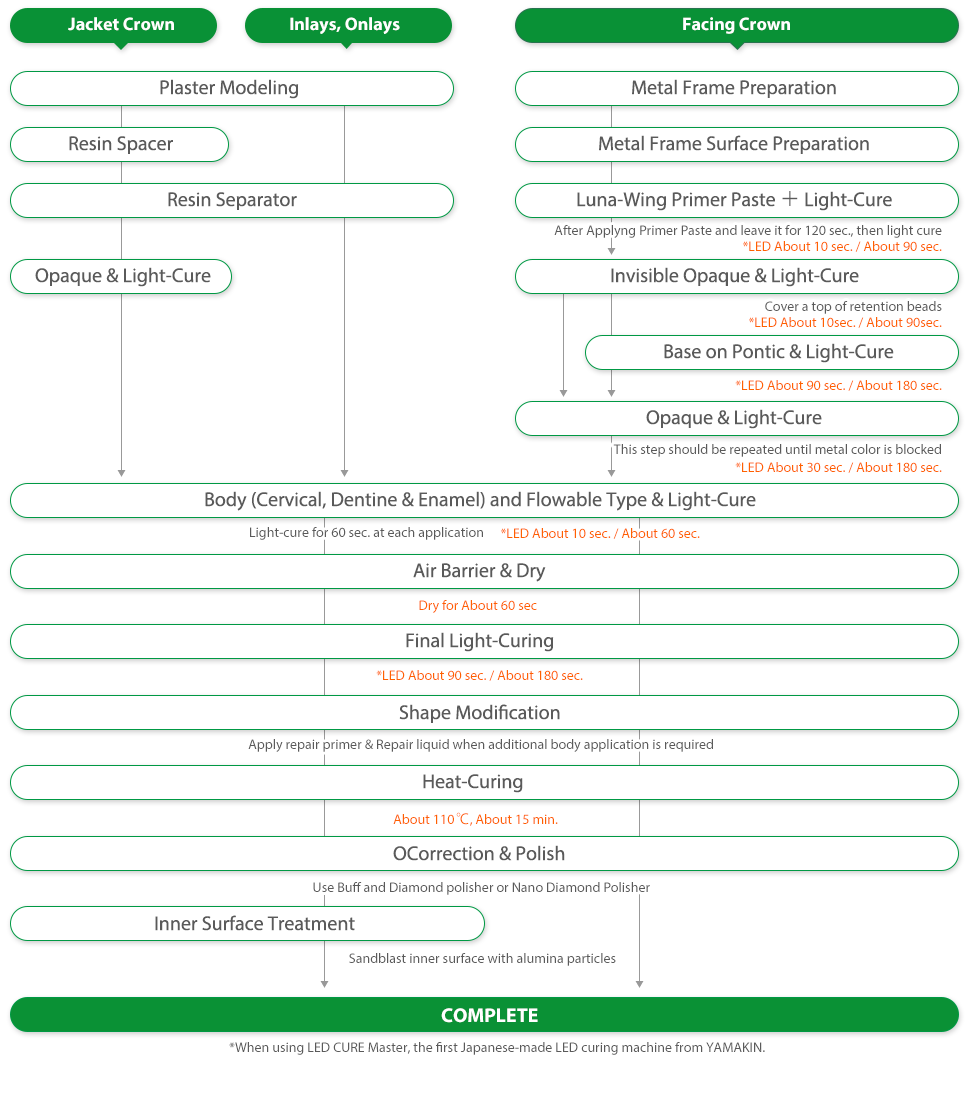

Basic Layering

Basic Layering Technique

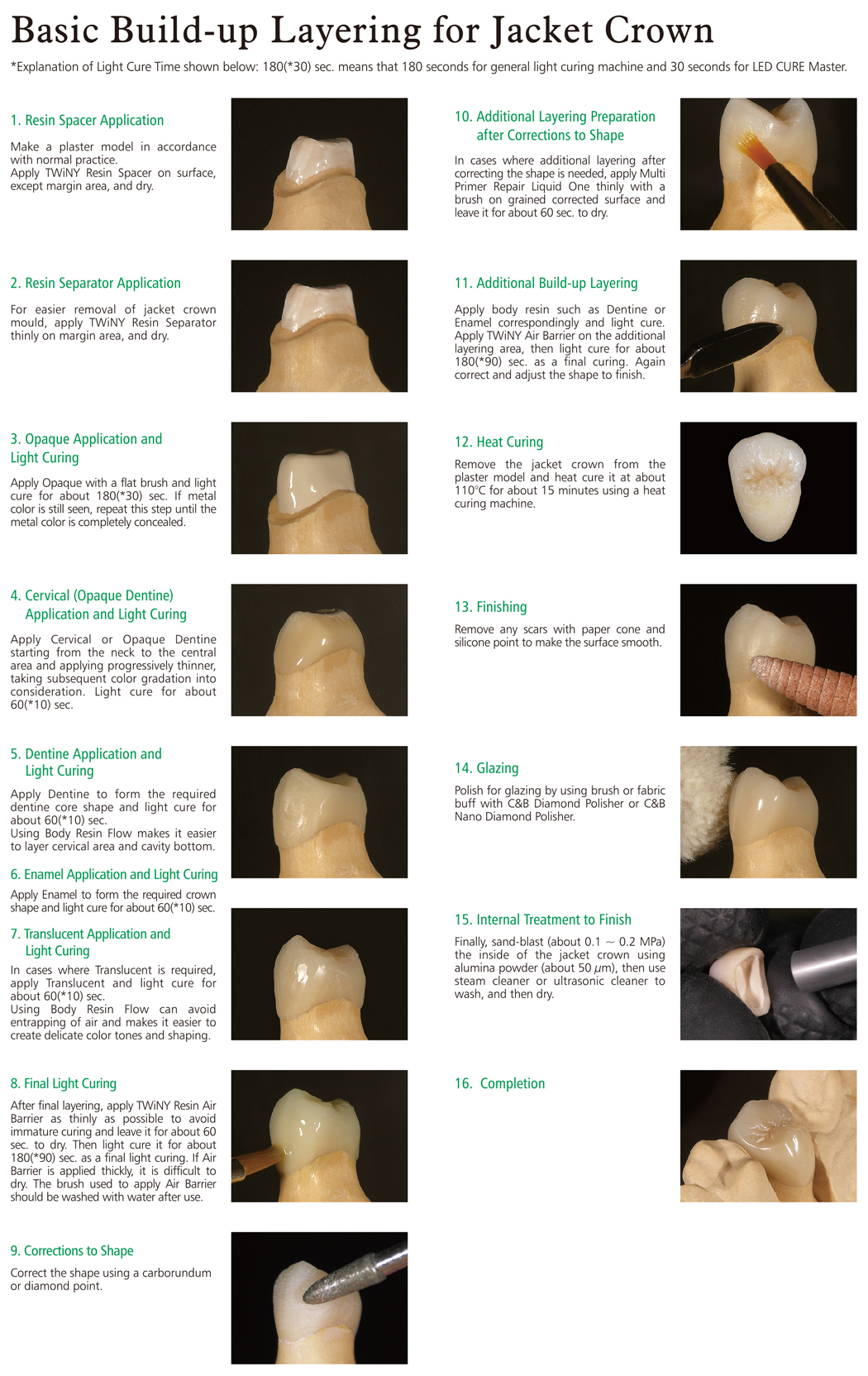

Jacket Crown

Facing Crown

Posterior (Jacket)

Posterior (Inlay)

Curing Time for Luna-Wing and TWiNY

		LED CURE Master	Other General Light Curing Machines
Invisible Opaque		10 sec.	90 sec.
Opaque		30 sec.	180 sec.
Body （Dentine, Enamel, etc）	Base	90 sec.	180 sec.
Body （Dentine, Enamel, etc）	Others	10 sec.	60 sec.
Stain		10 sec.	60 sec.
Final Light Curing		90 sec.	180 sec.

Curing apparatus for dental technique

» Click here for related information.

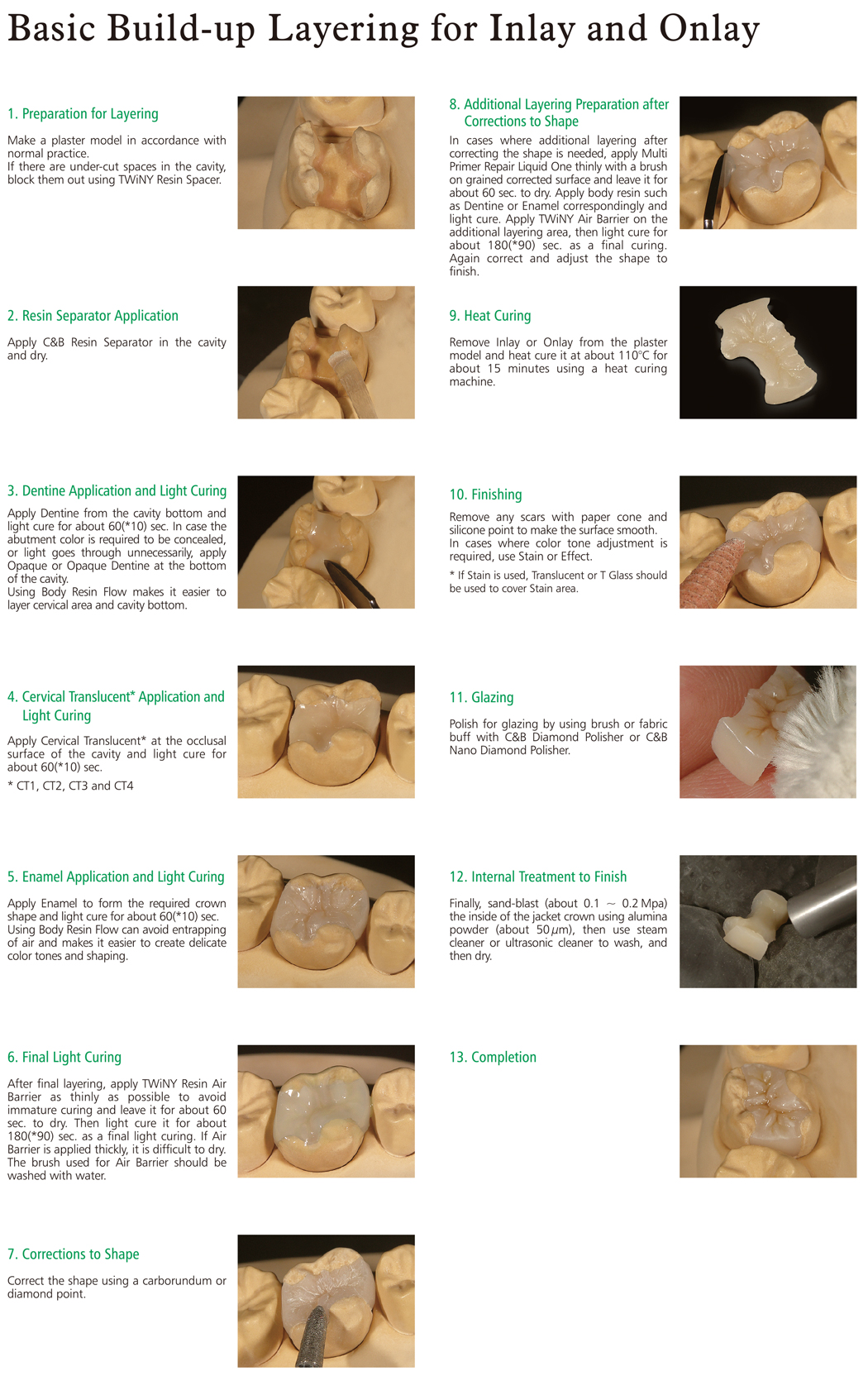

TWiNY Layering Technique for Inlay

step.1

Block out undercut area in a cavity with paraffin wax and apply TWiNY resin separator.

step.2

Apply Opaque Dentine A3.5 on the bottom of the cavity. Opaque Dentine is used in cases where sufficient thickness for resin layering has not been secured.

step.3

Apply Dentine A3.5 at the bottom of the cavity on the buccal side, lingual side, and adjacent side.

step.4

Apply AM as a base to give expression to depth of occlusal surface center.

step.5

In order to gain lens effect (underlying color) from cavity marginal zone, apply CT3 on the cavity wall area. Apply around cusp area of occlusal surface.

step.6

In order to gain lens effect (underlying color) from cavity marginal area, apply CT2 on the cavity marginal area. Apply around streamline of occlusal surface.

step.7

Apply Enamel 3 on posterior enamel layer, matching the color etc. with adjacent teeth.

Basic Layering Technique

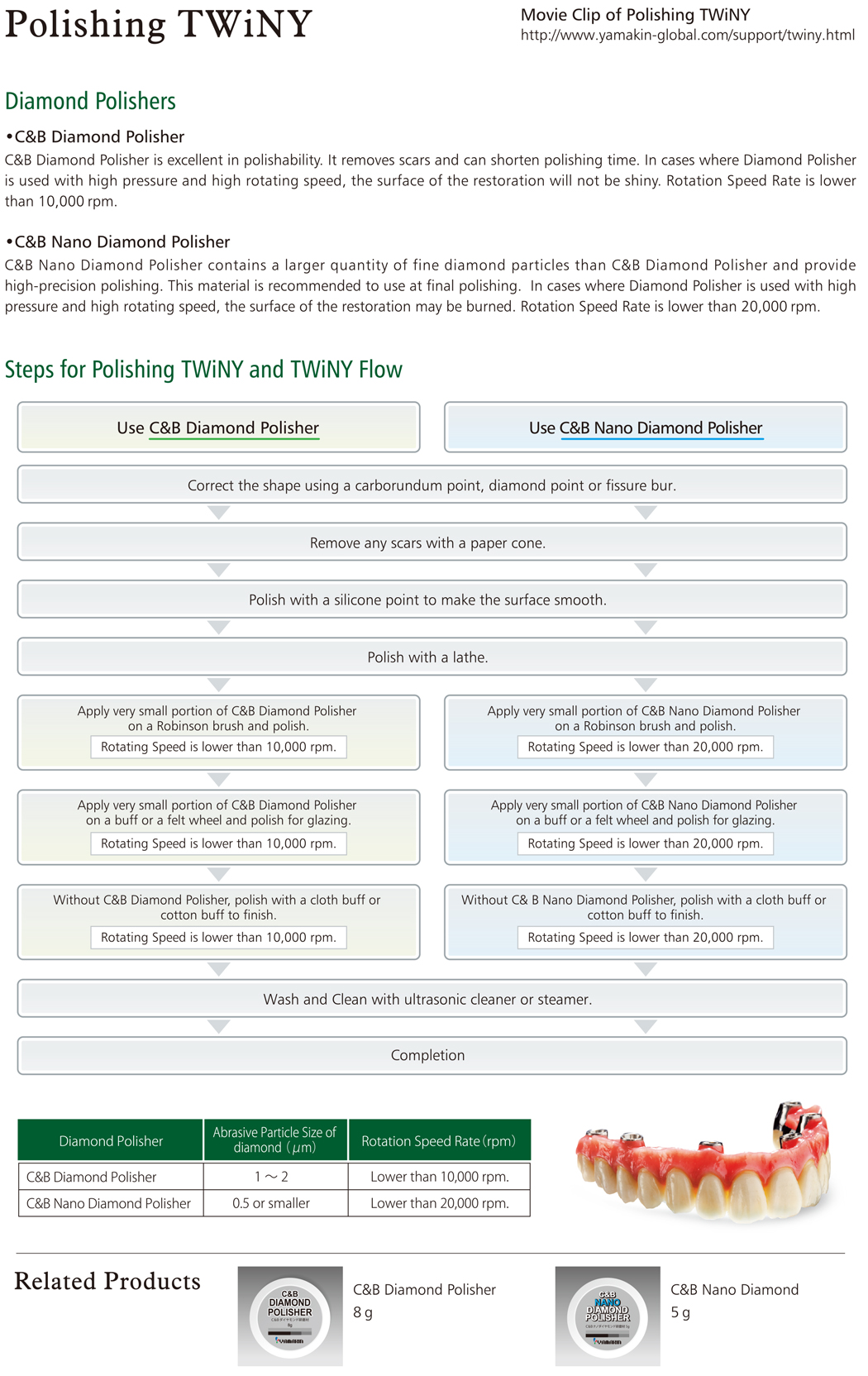

For glazing, use TWiNY C&B diamond polisher. In cases of making Onlay and 1st class Inlay, the process from step 4 to step 7 can be undertaken for the prepared cavity so that the color tone will be closer to natural.
For fixing in the mouth, resin cement is recommended as an adhesive.
