KZR-CAD HR2

Operations

1Key Points of Forming Abutment Tooth

Clearance and shape when forming an abutment are also important points for attention.
Contraindicated cases should be avoided, as inaccurate or insufficient fitting increases the risk of detachment.

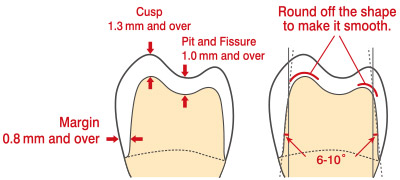

Important Note of Forming

Please prepare a sufficient thickness depending on the case.

Forming Margin Area

Recommended Examples

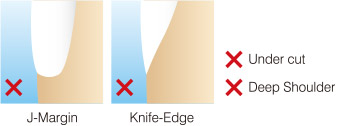

Contraindicated Examples

Other contraindicated cases: Edge is incisive, groove, rough margin, or tapered angle is zero or too large, or crown height is too short.

2Flow of Making CAD/CAM Crowns

① Preparing a Model

② Scanning the Model

*Delcam Japan Co., ltd(iMetric D102i)

③ Setting KZR-CAD HR 2

*Roland DGA Corporation
(Dental Milling Machine DWX-50)

④ After Milling KZR-CAD HR 2

(left: Large Size, center: Middle Size, right: Small Size)

⑤ Cutting Sprue

⑥ Removing Scratches with Silicone Point

⑦ Polishing with Robison Brush*1

⑧ Final Polishing with Cotton Buff *2

⑨ Completion

*1 *2
Polishing of KZR-CAD HR 2 can be performed to a high level of glaze not only with diamond polisher for hybrid resin but also with general alumina polisher.

3Key Points of Setting

① Alumina Sandblasting44

② Washing with Phosphoric Acid after Trial

After trial, always wash the inside of the crown with phosphoric acid, then rinse and dry to remove saliva and blood proteins.

③ Surface treatment

Apply surface treatment agent containing silane coupling for ceramics inside of the crown, and then dry,

④ Tooth Surface Treatment

Wash tooth and perform surface treatment in accordance with the appropriate instructions for the cement to be used.

⑤ Cement Application

Apply resin cement for CAD/CAM hybrid ceramics block inside the crown in accordance with the proper operational instructions.

⑥ Pressing Down and Light-Curing

Press it down to fit and light-cure in accordance with normal operational instructions. Then, remove surplus cement and light-cure sufficiently as a final curing.
